Projects

Description:

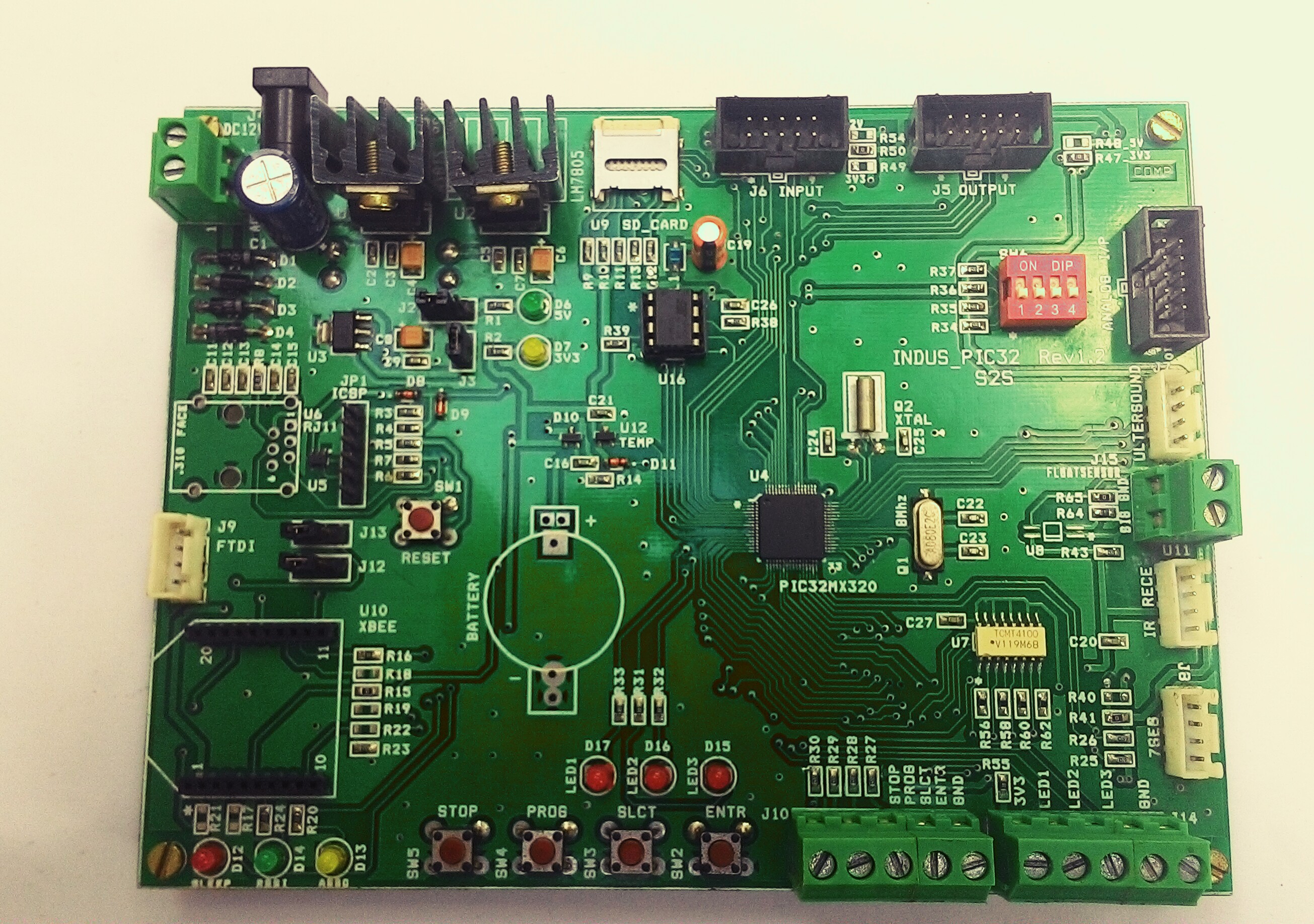

• It reads the temperature value from the J-Type thermo Coupler.

• The Firmware compares the read thermo couple value with its set point, then it control the 230 AC voltage and it control the flow of chemical by controlling the DC Motor.

• The Xbee sends the data such as flow level indication, current temperature, set point, flow duration to the PC.

• The PC displays the value on customized GUI.
Features:

• Supports both AC and DC voltage Power Supply (17V- 12V ).

• PIC32MX320F128H: Operate up to 80MHZ.

• Xbee interface.

• SD card stores data for future reference.

• IR Sensor used for remote control to select menu.

• Ultra Sound Sensor measures level of the chemical.

• Temperature Sensor measures temperature value.

• 8MB flash stores configuration data from GUI.

• The Opto-coupler protects external voltage fluctuation.

• On Board temperature sensor monitor board’s temperature.

• CMOS battery.

Description:

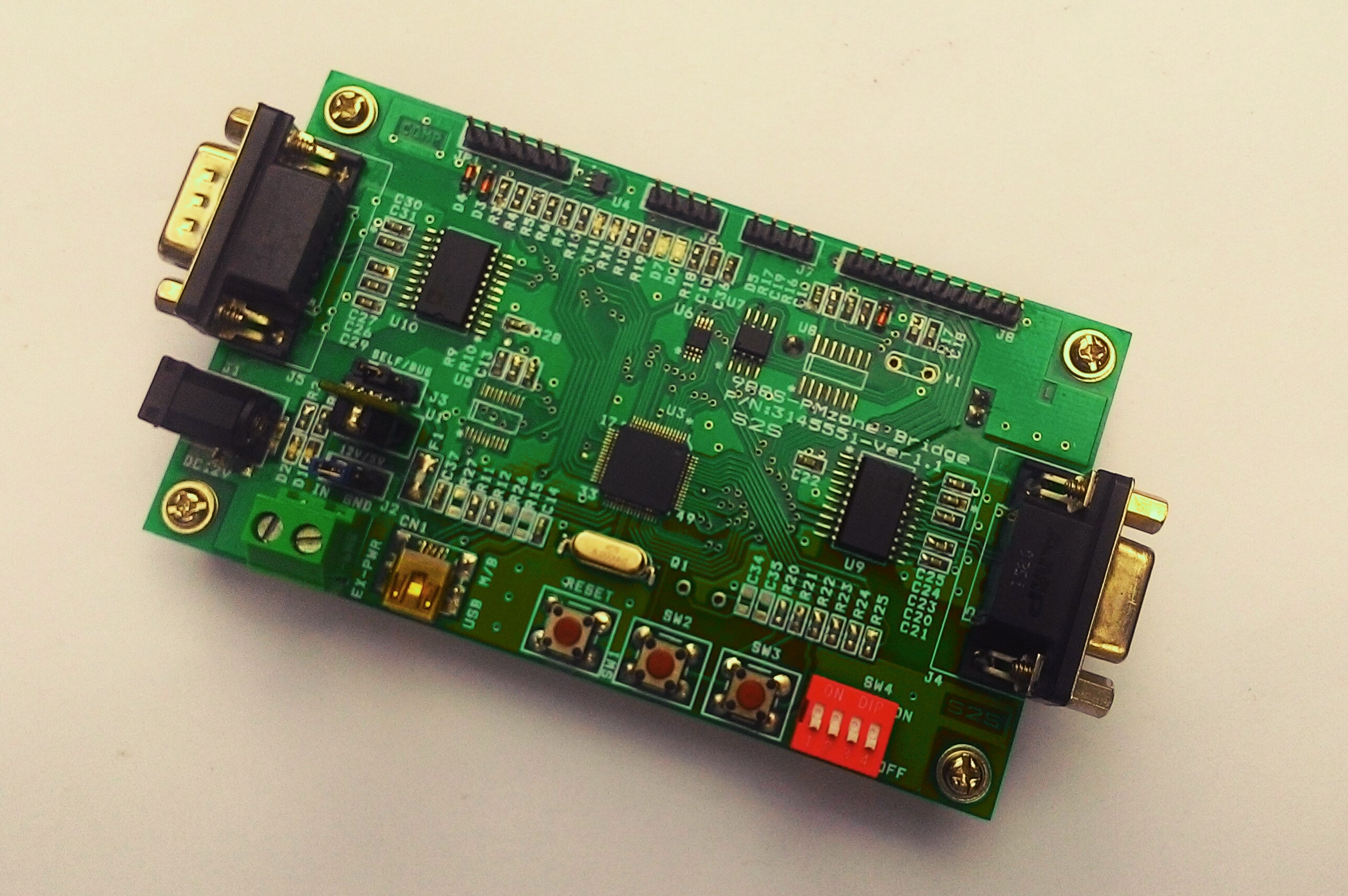

• WPID supports EZ-Zone PM PID to replace the existing Watlow PID S988.

• The input of the WPID is based on the protocol of ANSI 3.2.

• It match the S998 commands to EZ-Zone PM commands, then matched commands given to the EZ-Zone PM using MODBUS Protocol.
Features

      • 12V DC Power Supply.

    • PIC32MX564F064H Controller-Operate upto 80MHZ.

     • RTCC configures the date and time.

    • On board digital temperature Sensor monitors the board’s temperature.

      • 2MB Flash stores the configuration data

      • 2.5 kV fully isolated (power and data) RS-232 transceiver

      • USB interface is used to configure the board through the PC.

Description

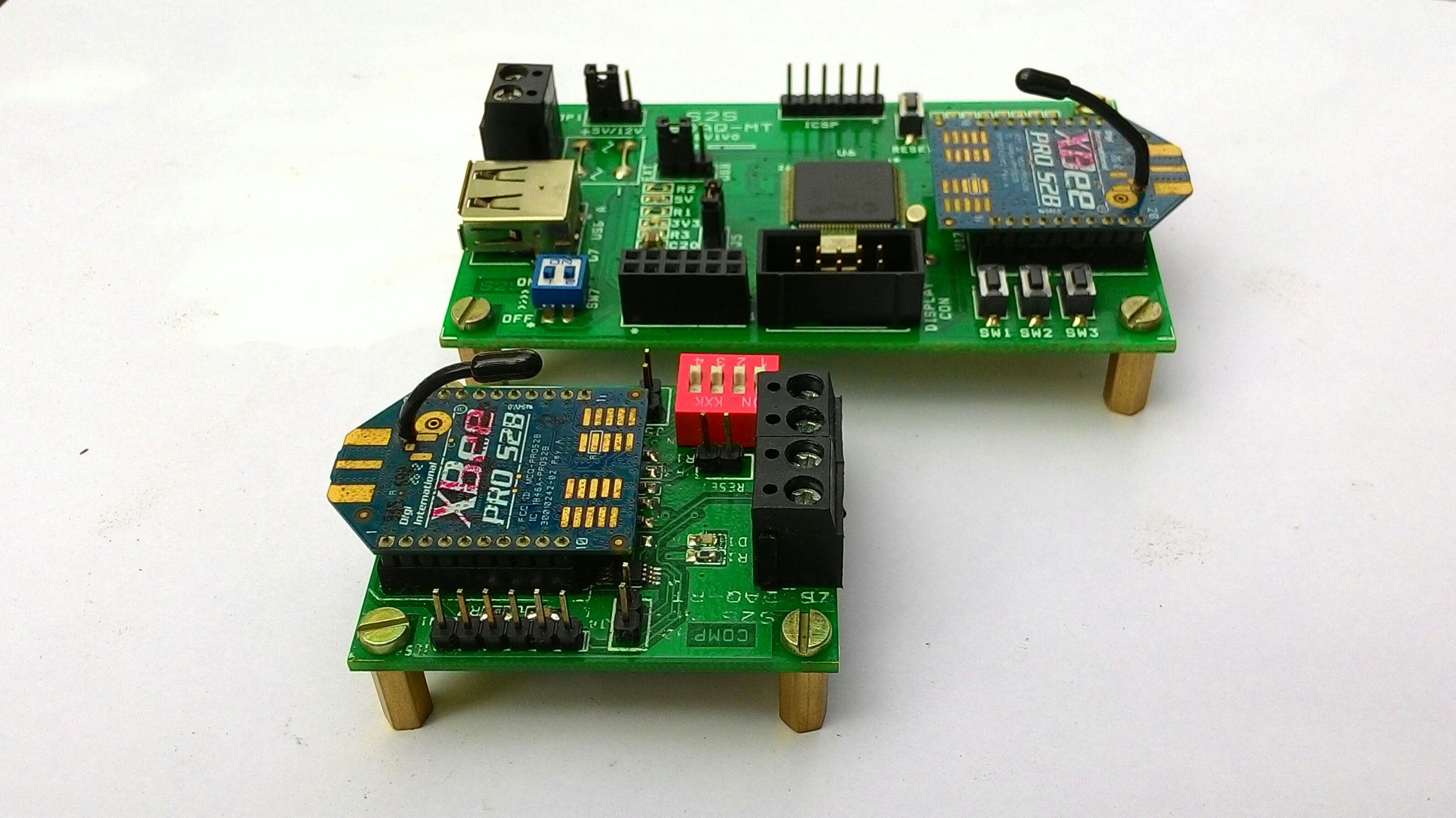

• ZBDAQ-MT board can be used as either USB-Host or USB-Device.

• The data from the USB host or Device can be send through Xbee to PC and vice versa.

• ZBDAQ-RT has 18-bit ADC resolution IC which gives high resolution of digital codes up to 18 bits.

• Two different analog sensors can be connected to RT.

• Dog128 Display, displays the menu to enter the data from user.
Features: ZBDAQ-RT

       • PIC18F25k20 Controller -operated at 32MHZ.

       • 18 bit ADC IC, converts the analog to digital codes up to 18 bits of resolution.

       • Xbee or MIWI transmits and receive the data from PC.
Features:ZBDAQ-MT

      • PIC32MX795F512L Controller - Operate up to 80MHZ.

  • Triple Power Supply: 12V, 5V, USB-MINI B Power Supply.

       • Dogm 128 Display.

      • Type A Connector – MT act has USB host.



      • Type Mini B Connector- MT act has USB Device.

• Xbee or MIWI is used to transmit the data to and from the PC.

Description

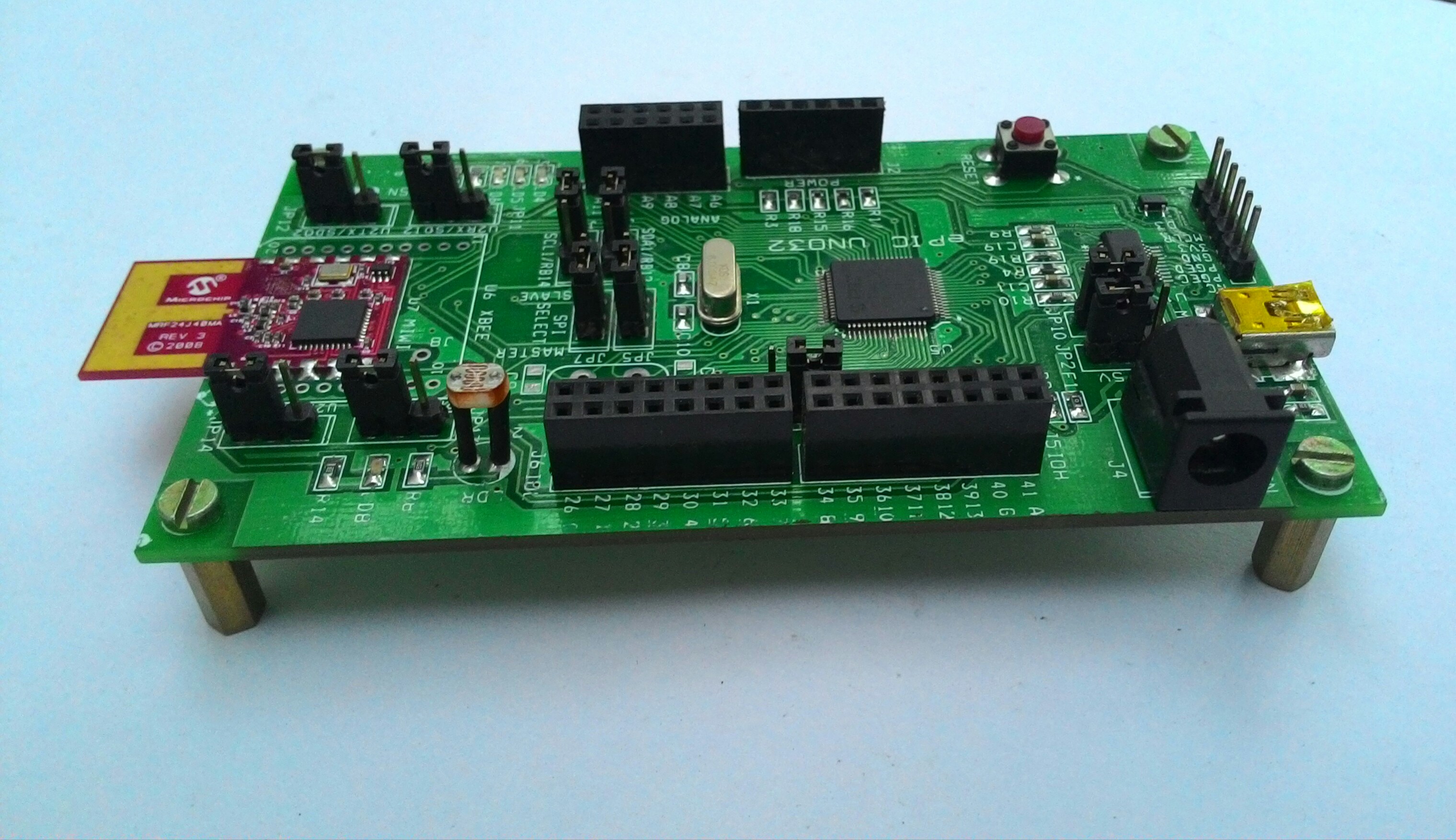

• It is compatible of the Chip-Kit.

• ePIC can be used as arduino compatible as well as PIC32.

• It supports arduino add-on boards and chip kit add-on boards.

• It is a Student Development Board.
Features

      • PIC32MX320F128H Controller - Operate up to 80MHZ.

  • Triple Power Supply: 12V, 5V, USB-MINI B Power Supply.

• On board LDR is present.

     • Xbee or MIWI is used for wireless transmission.

     • 12 Analog GPIO pins are available.

     • 32 Digital GPIO pins are available.

Description

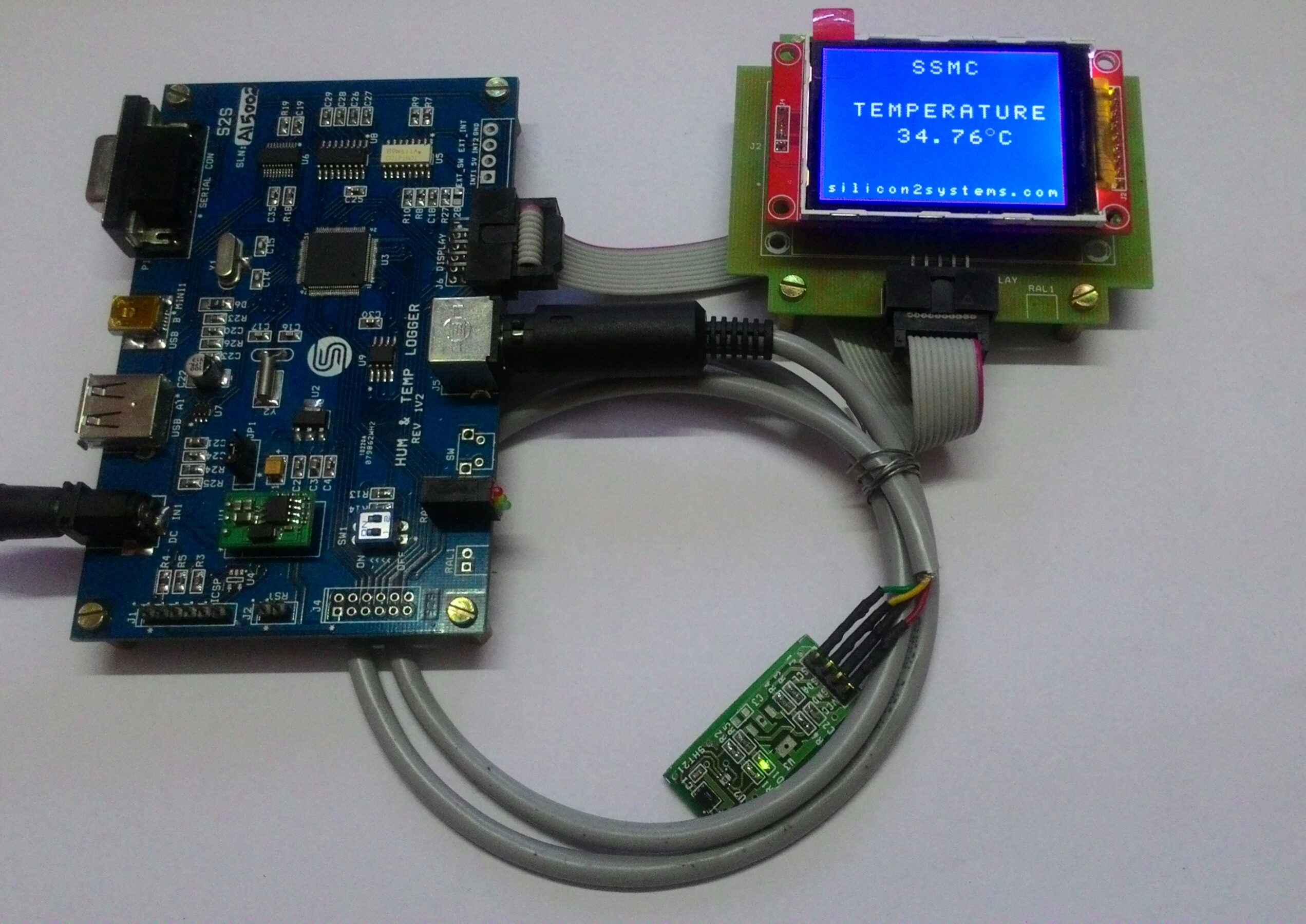

• It measures the Relative Humidity and Temperature of the air by sensor connected to the board.

• Flash IC which stores the maximum and minimum value of relative humidity and temperature value

• Dogm 128 displays the humidity and temperature value. The display flashes the maximum and minimum set point of relative humidity and temperature value.

• It sends the value to the PC by UART, which is monitored and logged through customized GUI.
Features:

• PIC32MX320F128H Controller - Operate up to 80MHZ.

• Triple Power Supply: 12V, 5V, USB-MINI B Power Supply.

• Dogm 128 display.

• 2MB Flash stores the set point values and other parameter values.

• External RTCC.

• CMOS battery.

• SD Card Slot.

• Two external interrupt pins are optically coupled to reduce noise.

.

Description:

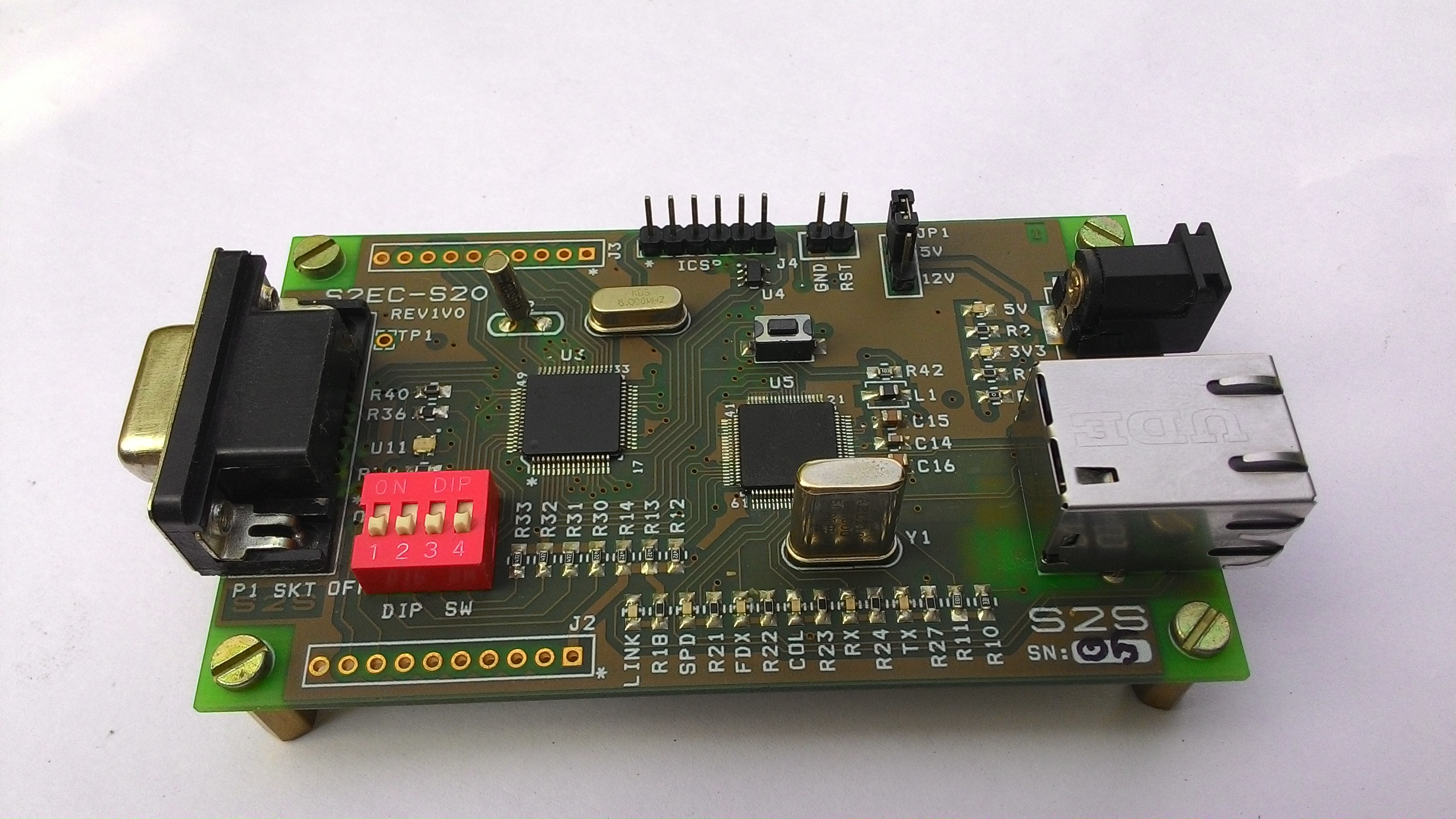

• Remotely Access, monitor and control equipment over Ethernet.

• Supports RS232 Communications.

• It supports the Modem Emulation Mode. In this mode, the S2EC-S20 is used to replace the Dial-up modems.

    • It accepts the AT commands on the Serial Port.
Features:

    • PIC32MX320F128H Controller - operate up to 80MHZ.

    • 12V or 5V Power Supply.

    • Protocol Supports: HTTP, SMTP, FTP, DHCP, DNS, TCP, UDP, ICMP,IPV4 ARP, IGMP, PPPoE.



• 10BaseT/100Base TX Ethernet PHY embedded.

    • Supports 4 independent sockets simultaneously.

    • Supports GSM AT Commands.

S2S PID
